Description

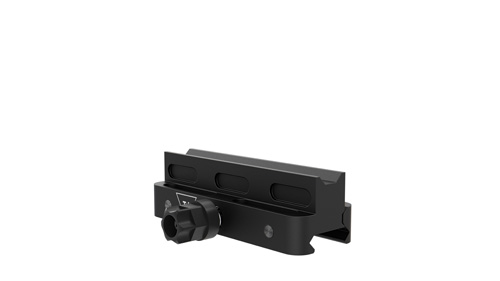

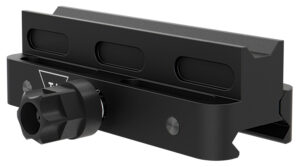

ACOG Mount w/ Q-LOC

The Trijicon ACOG® Extra High Mount with Trijicon Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed toolless mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

This mount boasts a low weight and low profile design with precise return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for heads up shooting with the Trijicon ACOG®.

• Matte Black Anodized Finish
• Made in the USA

Distance From Top of Mounting Rail to Optical Axis:
2.05″

Torque Spec (to Rail):

Spring Tension Only: 12-16 in. / lbs
Can be Tightened To: 30-38 in. / lbs

Description:

• Quick-release, return to zero
• Automatic retention keeps optic secure
• Snag resistant knob design
• Precision cut dimensions
• Proven durability

Specifications:

• Housing Material 6061-T6 Aluminum
• Finish Matte Black
• Length 3.5 in (88.9mm)
• Width 2.4 in (60.96mm)
• Height Above Rail (in/mm) 2.05″ in. (52.07mm)
• Feature Trijicon Q-LOC™ Technology
